LMV331W5-7
Manufacturer:
Diodes Incorporated
Mfr.Part #:
LMV331W5-7
Datasheet:
Description:

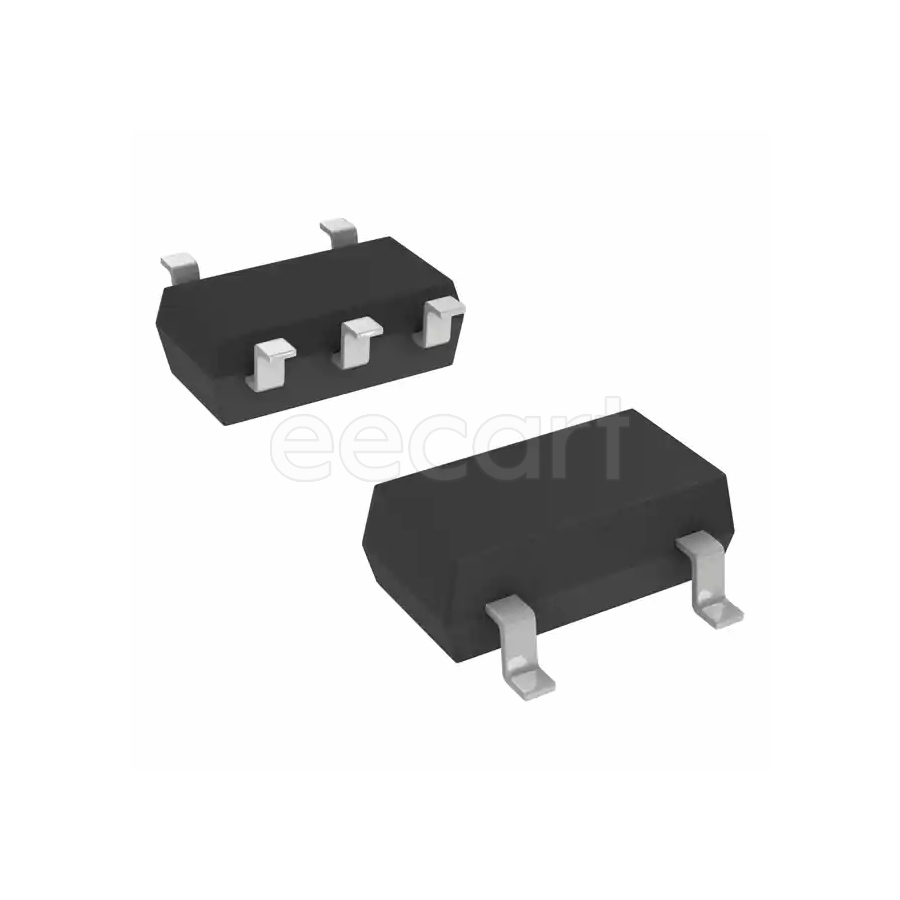

Comparators SOT-25-5 SMD/SMT General Purpose
| Parameter | Value |
|---|---|
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Reel |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Type | General Purpose |
| Number of Elements | 1 |
| Output Current | 84 mA |
| Output Type | Open Collector |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 2.7 V |
| Number of Channels | 1 |
| Operating Supply Current | 60 µA |
| Input Bias Current | 250 nA |
| Quiescent Current | 200 µA |
| Propagation Delay | 450 ns |
| Output Current per Channel | 84 mA |
| Max Input Current | 250 nA |
| Input Offset Voltage (Vos) | 7 mV |
| Voltage Gain | 93.98 dB |
| Schedule B | 8542390000 |
Stock: 1032
Distributors
pcbx
pcbxUnit Price$0.15706
Ext.Price$0.15706
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.15706 | $0.15706 |
| 10 | $0.14011 | $1.40110 |
| 50 | $0.12499 | $6.24950 |
| 100 | $0.10906 | $10.90600 |
| 500 | $0.09516 | $47.58000 |
| 1000 | $0.09167 | $91.67000 |
| 3000 | $0.08830 | $264.90000 |
| 5000 | $0.08359 | $417.95000 |
